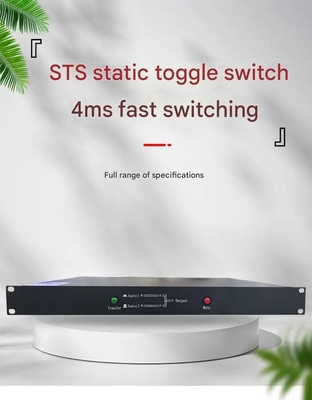

STS Dual Power Static Transfer Switch With A Supply Capacity Of 6KVA Features Dual AC Circuits Enables Automatic Uninterrupted Power Switching

1pcs
MOQ
USD 1
prezzo
STS Dual Power Static Transfer Switch With A Supply Capacity Of 6KVA Features Dual AC Circuits Enables Automatic Uninterrupted Power Switching
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Model: STS25S / STS25D
Rated voltage: 220Vdc
Input voltage range (VAC): 190~260
rated frequency (Hz): 50/60HZ
Power factor: 1
Forza dell'isolamento: 2KVAC, 1 minuto
Noise (1m): ≤55dB
Temperatura ambiente di funzionamento: -25 ̊50°C
humidity: 0~90%, with no condensation
Livelli di protezione: IP20
Evidenziare:

Dual power static transfer switch

,

6KVA static transfer switch

,

Automatic static transfer switch

Informazioni di base
Place of Origin: China
Marca: Custom -made
Certificazione: CE
Numero di modello: Prodotto su misura
Termini di pagamento e spedizione
Packaging Details: wooden cartons
Delivery Time: 1-2 weeks
Termini di pagamento: T/T
Supply Ability: 3000 pieces per month
Descrizione di prodotto

STS Dual Power Static Transfer Switch With A Supply Capacity Of 6KVA Features Dual AC Circuits Enables Automatic Uninterrupted Power Switching 0

STS-100 static transfer switch(STS) is a dual-input AC converter switch, and

the other way is disconnected, and the one AC input is used to power the load. When  the power supply supply is abnormal, STS will automatically switch to the other

power supply to ensure that the load is continuously supplied by the other power supply.


Technical Parameters:


Items

Technical Parameters

Switchtim

e

Priority switching

≤4m s

















AC

INPUT

Rated voltage (VAC)

220

Input voltage range (VAC)

190260

rated frequency (Hz)

50

power factor

1

Autoconvertthreshold voltage

≤190Vac ± 5Vacor≥260Vac ± 5Vac

Auto convert threshold frequency

≤45Hz±0.2Hzor≥65Hz±0.2Hz

Over-limit protection

shutdown threshold

voltage

160Vac or 265Vac, return ± 5V

Over-limit protection

shutdown threshold

frequency

45Hz or 65Hz, with differential ± 0.2Hz

overload capacity

Load current is 110%, operating continuouslyLoad

current> 110%, immediately shut-off;











Environme nt

insulation strength

2KVAC, 1min

Noise (1m)

≤55dB

operating ambient temperature

-25 50℃

Transport and storage temperature

- 4070℃

humidity

0~90%, with no condensation

levels of protection

IP20

height (m)

≤300020003000mOutput reduction of 2% per 100m increase

defencive function

Input undervoltage, overvoltage protection, output

overload protection, over temperature protection, short

circuit protection


STS Dual Power Static Transfer Switch With A Supply Capacity Of 6KVA Features Dual AC Circuits Enables Automatic Uninterrupted Power Switching 1

STS Dual Power Static Transfer Switch With A Supply Capacity Of 6KVA Features Dual AC Circuits Enables Automatic Uninterrupted Power Switching 2STS Dual Power Static Transfer Switch With A Supply Capacity Of 6KVA Features Dual AC Circuits Enables Automatic Uninterrupted Power Switching 3STS Dual Power Static Transfer Switch With A Supply Capacity Of 6KVA Features Dual AC Circuits Enables Automatic Uninterrupted Power Switching 4STS Dual Power Static Transfer Switch With A Supply Capacity Of 6KVA Features Dual AC Circuits Enables Automatic Uninterrupted Power Switching 5STS Dual Power Static Transfer Switch With A Supply Capacity Of 6KVA Features Dual AC Circuits Enables Automatic Uninterrupted Power Switching 6

STS Dual Power Static Transfer Switch With A Supply Capacity Of 6KVA Features Dual AC Circuits Enables Automatic Uninterrupted Power Switching 7

STS Dual Power Static Transfer Switch With A Supply Capacity Of 6KVA Features Dual AC Circuits Enables Automatic Uninterrupted Power Switching 8

STS Dual Power Static Transfer Switch With A Supply Capacity Of 6KVA Features Dual AC Circuits Enables Automatic Uninterrupted Power Switching 9

Solutions
We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.

FAQ :
1. How do you control the quality?
A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.

2. What is your minimum order quantity?
A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.

3. Can you introduce your company?
A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.

4. What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.

5. Can i send samples?Report it to me along with the price?
A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.

6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.

7 What about the quality ?
A:100% original with new package. we will test each item before posted to make sure each item with good quality.
8 How many months for guarantee ?
A: 1 year quality guarantee
9 How to deal with any inferior -quality goods ?
A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.


STS Dual Power Static Transfer Switch With A Supply Capacity Of 6KVA Features Dual AC Circuits Enables Automatic Uninterrupted Power Switching 10

STS Dual Power Static Transfer Switch With A Supply Capacity Of 6KVA Features Dual AC Circuits Enables Automatic Uninterrupted Power Switching 11
