Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers

1
MOQ
Inquiry
prezzo
Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Modello: NetCol8000-C150D
Tipo di riscaldamento elettrico: PTC
Peso unitario (kg): 295
Capacità di raffreddamento: Varia in base al modello, in genere da 5 kW a 50 kW
Umidificatore: 8
punto di vendita: costantemente temperatura e umidificare
Volume dell'aria: 6000m3/h
Precisione dell'umidità: ±1,5%
Garanzia: Un anno
Livello di filtro dell'aria: G4
Dimensione dell'unità: 760*550*1900
Punti chiave di vendita: Risparmio energetico
Rapporto di prova del macchinario: Fornito
Forma del fan: Fan EC
QTY del compressore: 2 pezzi
Filtro: G4 Filtro dell'aria
Informazioni di base
Luogo di origine: Cina
Marca: HUAWEI
Numero di modello: NetCol8000-C150D
Termini di pagamento e spedizione
Imballaggi particolari: cartoni di legno
Tempi di consegna: 5-8 settimane
Termini di pagamento: T/T
Capacità di alimentazione: 500 set al mese
Descrizione di prodotto
Description

Huawei NetCol8000-C150D is a 150kW chilled water room-level precision air conditioner specially developed by Huawei for medium and large data centers, IDC computer rooms, financial disaster recovery centers and operator base stations. It focuses on high-efficiency refrigeration, intelligent temperature control, high-reliability operation and maintenance, and green energy saving. It perfectly meets the constant temperature and constant humidity environmental requirements of high-density IT equipment, and is the core temperature control choice for data center infrastructure.

Appllcation

Medium & large data centers, IDC/EDC computer rooms, cloud computing centers

Financial institution headquarters, disaster recovery centers, bank trading computer rooms

Telecom core computer rooms, provincial-level base data centers

Government cloud, smart city and safe city data computer rooms

Key business computer rooms in energy, medical treatment, education and other industries


Specification

  • Rated Cooling Capacity: 150kW (Chilled Water Type)
  • Air Volume: 13750m³/h
  • Fan Type: EC Variable-frequency Centrifugal Fan
  • Humidification Type: Wet Membrane Humidification 7kg/h
  • Electric Heating: PTC Heating 12kW
  • Power Supply: 380-480V / 3Ph / 50-60Hz
  • Dimension (W×D×H): 1200mm×850mm×2000mm
  • Weight: Approx. 360kg
  • Air Supply Mode: Downflow, Room-level Installation

Product Display

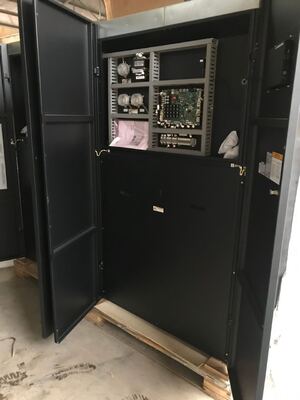

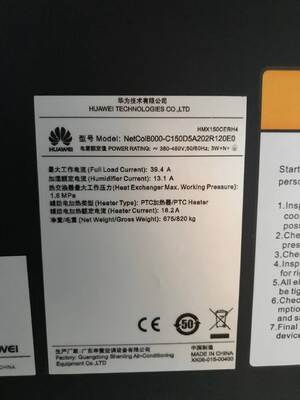

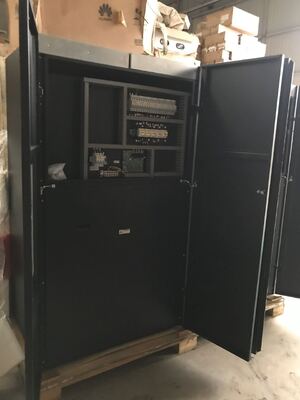

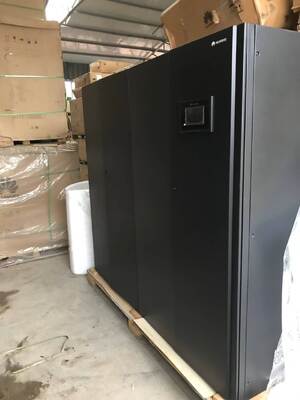

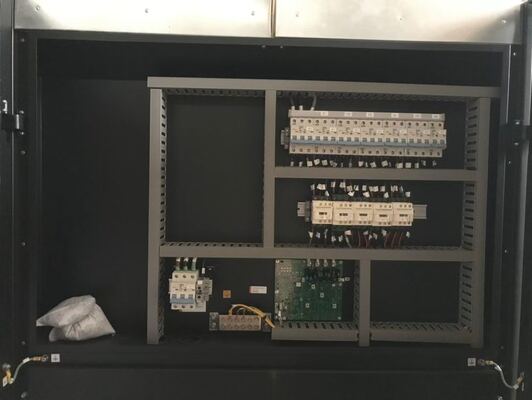

Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers 0

Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers 1

Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers 2

Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers 3Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers 4

Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers 5


Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers 6

Huawei NetCol8000-C150D 150kW Chilled Water Precision Air Conditioner with EC Variable-frequency Fan and Downflow Air Supply for Data Centers 7
