Name: MK-930WS 991.1KW Water-Cooled Screw Chiller - 3N-380V/50Hz Industrial Cooling System
Brand: Beijing Ding Ding Future Technology Co.Ltd
SKU: MK-710WS
Price: 199.00 USD
Availability: InStock

MK-930WS 991.1KW Water-Cooled Screw Chiller - 3N-380V/50Hz Industrial Cooling System

MOQ

Inquiry

prezzo

Caratteristiche Galleria Descrizione di prodotto Valutazioni e recensioni Richieda una citazione

Caratteristiche

Specificazioni

Modello: MK-930WS

Capacità di raffreddamento: 991.1

Alimentazione elettrica: 3N-380V/50Hz

Potenza nominale del compressore: 204.9

Corrente nominale/A: 357,7

Refrigerante: 208.0

Quantità di acqua M3/h: 205.7

Peso: 170,5

Evidenziare:

water-cooled screw chiller 380V

industrial cooling system 50Hz

precision air conditioner with warranty

Informazioni di base

Numero di modello: MK-710WS

Termini di pagamento e spedizione

Imballaggi particolari: cartoni di legno

Tempi di consegna: 5-8 settimane

Termini di pagamento: T/T

Capacità di alimentazione: 500 set al mese

Galleria

MK-930WS 991.1KW Water-Cooled Screw Chiller - 3N-380V/50Hz Industrial Cooling System

Descrizione di prodotto

Description

The waterrcooled screw chiler is an efficent and stable industrial relrigeration equioment that adopts advanced screwcompression technology and high-efficiency shell and tube condenser, designed specilically for industrial environmentsthat require large cooling capacily and continuous cooling. It has high refrigeration efficiency, stable aperation, energyconservation and environmental protection, and is widely used in industries such as central air conditioning systems,chemicals, food and beverage, pharmacoutical manutacturing, clectronics, etc., providing customers with relablerefrigeration solutions.

Specification

型号 Model			MK-710WS	MK-830WS	MK-930WS	MK-410WD	MK-510WD	MK-620WD	MK-710WD
参数 Parameter
额定制冷量 Designed capacity	KW/h	50HZ	749.9	878.5	991.1	815.8	1035.4	1287.8	1499.8
额定制冷量 Designed capacity	X1000Kcal		644.9	755.5	852.3	701.6	890.4	1107.5	1289.8
温度范围 Temperature range			5℃-15℃/25℃-30℃
电源 Power supply			3N-380V/50Hz
压缩机 Compressor	类型 Type		半封闭螺杆式 Semi-hermetic screw
	数量 Quantity		1	1	1	2	2	2	2
	额定功率 KW Rated power		154.0	181.4	204.9	175.0	214.4	270.0	308.0
	额定电流 A Rated current/A		267.3	317.4	357.7	308.8	370.0	465.6	534.6
	能效调节 Energy saving		0.25%-50%,75%-100%
制冷剂 Refrigerant	种类 Type		R22
	充注量KG 充注量KG		160.0	184.0	208.0	96*2	120*2	144*2	160*2
	节流方式 Throttle method		外平衡式能力蒸发器 Thermal expansion valve
冷凝器 Condenser	形式 Form		壳管式冷凝器 Shell and tube condenser
	水量 M3/h Amount of water M3/h		155.5	182.3	205.7	170.4	215.0	267.9	310.9
	进出水规格 Inlet and outlet water size		DN150	DN150	DN200	DN150	DN200	DN200	DN200
蒸发器 Evaporator	形式 Form		壳管式蒸发器 Shell and-tube evaporator
	水量 M3/h Amount of water M3/h		129.0	151.1	170.5	148.3	178.1	221.5	258.0
	进出水规格 Inlet and outlet water size		DN150	DN150	DN200	DN150	DN200	DN200	DN200
机器尺寸 Machine size	L/mm		3600	3600	3600	3200	3400	3600	3600
	W/mm		1600	1600	1600	1700	1700	1700	1800
	H/mm		1700	1700	1700	1850	1850	1850	1800
机组重量 Unit weight	KG		3200	3450	3700	3500	4000	4500	5000

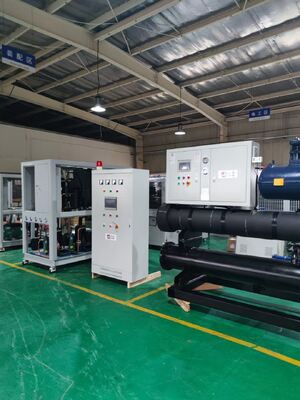

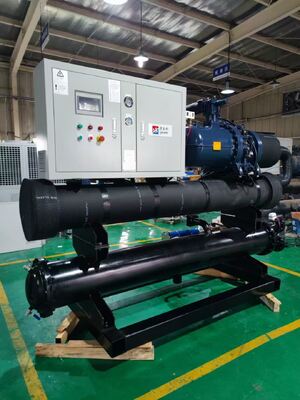

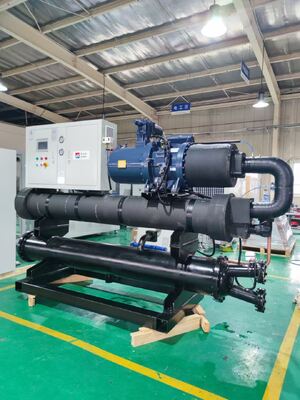

Product Display

MK-930WS 991.1KW Water-Cooled Screw Chiller - 3N-380V/50Hz Industrial Cooling System 0

MK-930WS 991.1KW Water-Cooled Screw Chiller - 3N-380V/50Hz Industrial Cooling System 1

MK-930WS 991.1KW Water-Cooled Screw Chiller - 3N-380V/50Hz Industrial Cooling System 2
